About:

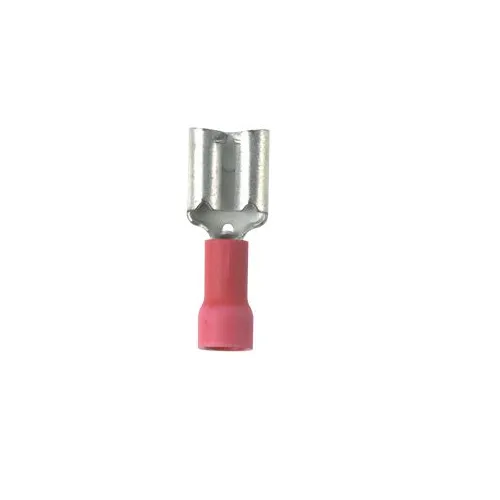

This pack consists of 100 female disconnect terminals that feature a butted seam construction, where the edges of the terminal barrel come together and are crimped to secure the wire. The "0.10" might refer to the tab size or another dimensional specification. They are insulated with a vinyl covering (barrel) to provide protection against electrical shorts and ease of handling.

Also Known As:

• Crimp-on female spade connectors
• Female quick disconnects
• Insulated female spade terminals
• Vinyl-insulated female push-on connectors

Common Applications:

• Electrical installations that benefit from the ability to quickly disconnect and reconnect circuits without tools
• Connections within consumer electronics that may require servicing or replacement
• Modular connections in industrial control panels for easy maintenance and troubleshooting
• Wiring for automotive electrical systems, such as audio systems, lighting, or control circuits
• Quick connection points in HVAC systems for sensors, controls, or thermostat wiring

Standards:

• UL certification for safety standards compliance
• CSA certification for standards adherence in Canada
• RoHS compliance to ensure the absence of certain hazardous substances in electrical components
• Might also adhere to specific ANSI or IEC standards relevant to electrical connectors

Construction:

• Intended to be crimped onto a wire and then slid onto a male disconnect terminal to complete the connection
• Vinyl insulation covering the crimp area and extending over part of the terminal for user safety and ease of identification
• Made with a conductive metal such as copper or brass, typically plated with tin for improved connectivity and corrosion resistance
• The butted seam design involves the edges of the terminal barrel being joined together and crimped onto the wire

Features:

• Easy identification and matching with corresponding wire gauges due to the color-coding
• The insulation provides not only safety but also helps prevent the terminal from slipping off the wire
• The vinyl insulation is generally color-coded to correspond with the size of the wire the terminal is designed for (e.g., red for 22-18 AWG)
• The terminals are rated for certain electrical loads; it is essential to check the specifications for voltage and current ratings
• Packaged in quantities of 100 to provide a supply for multiple projects or for maintenance inventory
