About:

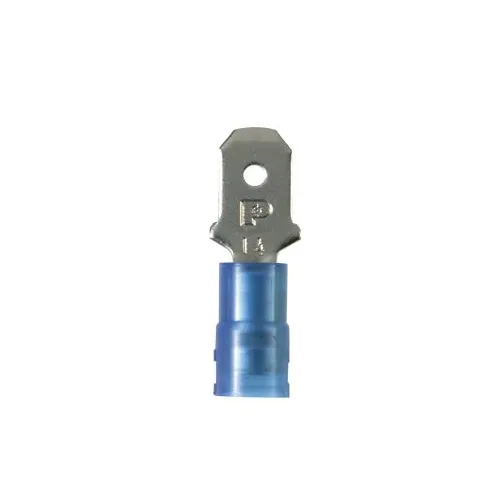

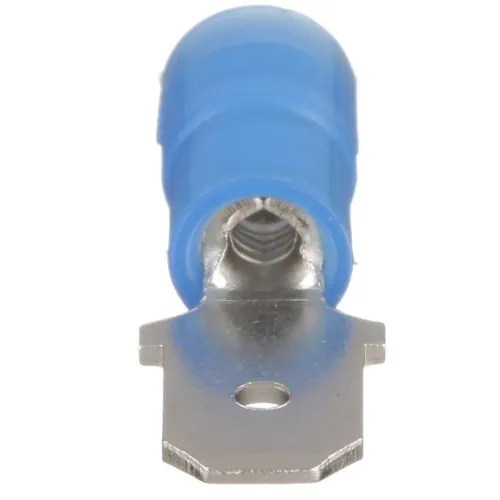

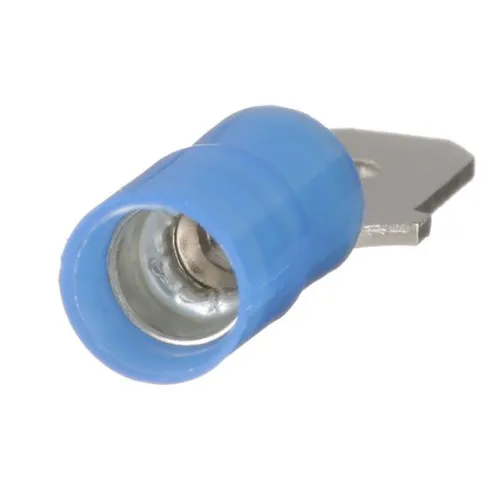

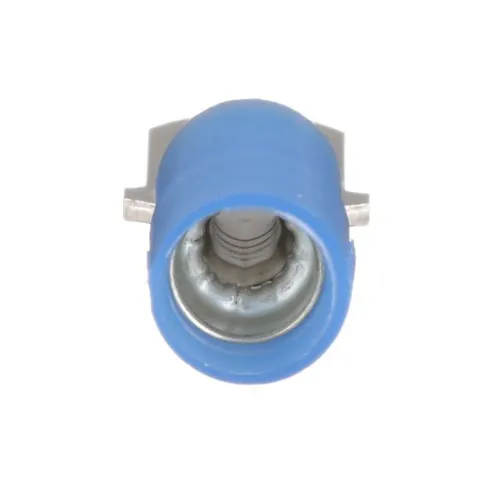

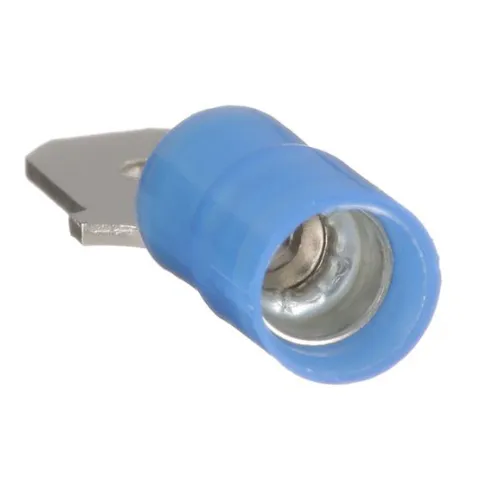

The vibration resistant male tab disconnect is made of copper and is nickel-plated. It is barrel insulated in a blue, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.90" (22.9 mm) long and 0.25" (6.4 mm) wide. The disconnect has a standard barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 100.
Also Known As:
• DNF14 Series Male Terminal
• 16-14 AWG Slip-On Male Terminal Connector
• DNF14-250M-C Nylon-Insulated Male Quick Disconnect
Common Applications:
• Industrial machinery and control panel connections
• Automotive audio, lighting, and electronic systems
• Household electrical systems and devices
• Scenarios necessitating a swift, insulated connection for 16-14 AWG wires
• Electronic circuit board and device assembly
Standards:
• UL Listed or Recognized
• RoHS Compliant
• CSA Certified
Construction:
• Terminal Body: Constructed from brass or copper, known for their superior electrical conductivity and anti-corrosion properties.
• Insulation: Utilizes high-quality nylon, providing defense against heat, chemicals, and mechanical abrasion.
• Plating: Coated with tin to augment conductivity and furnish resistance against oxidation.
Features:
• Streamlined Crimping: Meticulously fashioned to enable seamless and firm crimping using standard tools.
• High-Quality Insulation: The nylon insulation not only enhances aesthetics but also ensures safety, warding off potential short circuits.
• Color-coded: Adopts the standard blue hue typical for 16-14 AWG wire gauges, aiding users in selecting the appropriate terminal size.
• Sturdy Connection: Precision-engineered to guarantee a secure connection when coupled with its female counterpart.
Specification:
| Disconnect Type | Male Tab Disconnect |
| Insulation Material | Nylon |
| Insulation Type | Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Wire Strip Length (In.) | 1932-09-01 |
| Tab Size (In.) | 0.250 x 0.032 |
| Maximum Voltage (V) | 600 |
| Base Material | Copper |
| Finish/Coating | Nickel-Plated |
| Color Code | Blue |
| Barrel Type | Standard |
| Flammability Rating | UL94-HB |
| Insulation Diameter (In.) | 0.16 |
| Maximum Operating Temperature (°C) | 105 |
| Sub Brand | Pan-Term |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Overall Length (In.) | 0.9 |
| Overall Thickness (In.) | 0.03 |
| Overall Width (In.) | 0.25 |
| Tongue Angle | Straight |
| Packaging Type | Bottle |
| Product Type | Disconnect |
| Maximum Voltage (kV) | 0.6 |
| part No | DNF14-250M-C |
