About:

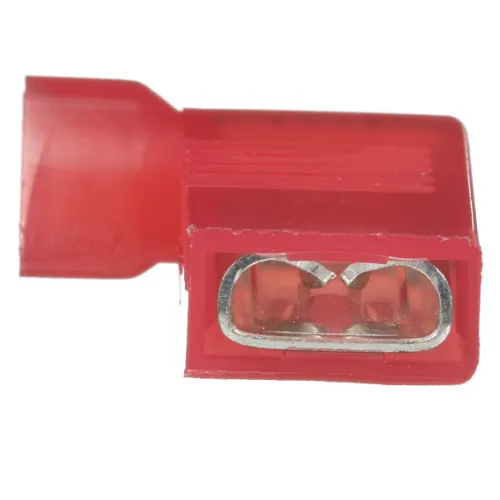

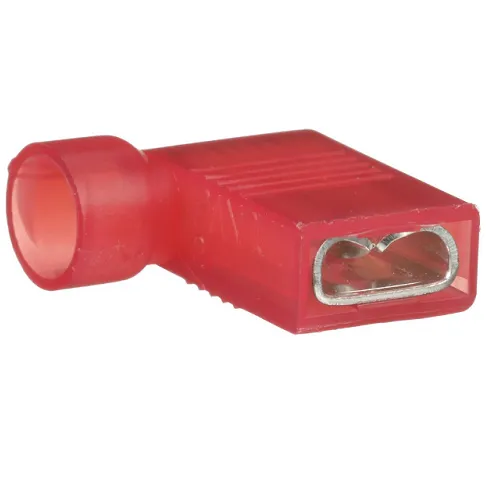

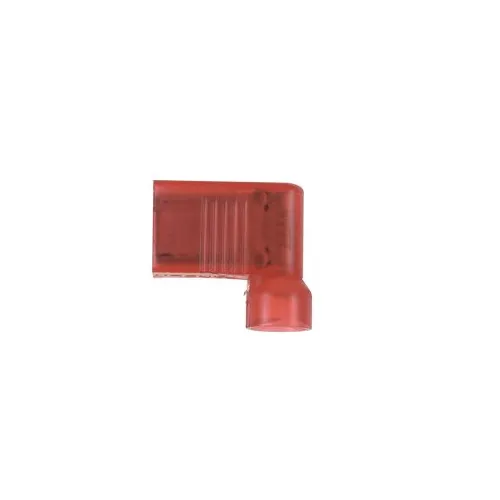

This is a bulk pack of 1000 female disconnect terminals designed for the purpose of creating removable electrical connections. Made for 22-18 AWG (American Wire Gauge) wires, these terminals come with nylon insulation. The "0.178" likely denotes the width of the disconnect's tab, and the right-angle design offers space-efficient connections.
Also Known As:
• Female spade connector
• 90-degree insulated terminal
• Right-angle quick disconnects
Common Applications:
• Automotive: In car audio systems, lighting, or accessory installations.
• Consumer Electronics: In devices requiring frequent connection and disconnection.
• Industrial Machines: In control panels or where there is a need for removable connections.
• Household Appliances: For easily connectable or replaceable components such as motors or heating elements.
Standards Met:
UL 310, CSA 22.2 No.153
Construction:
• Connection Type: Crimp, which indicates that the wire is inserted and then tightly crimped to secure the connection.
• Insulation: Constructed from nylon, ensuring both electrical insulation and a degree of mechanical protection.
• Conductor Material: Typically crafted from high-conductivity metals like copper or brass, and they're often tin-plated to counteract corrosion.
• Terminal Design: Right angle, which is suitable for situations where space is a constraint or when direct connections might lead to wire bending.
Features:
• UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)
• UL and CSA rated up to 600 V per UL 310
• Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
• Right angle design for use in limited space applications
• Longer barrel design for use with Panduit standard disconnect tool
Specification:
| Disconnect Type: | Female Disconnect-Right Angle |
| Insulation Material: | Nylon |
| Insulation Type: | Fully Insulated |
| Maximum Copper Conductor Size (AWG): | #18 |
| Maximum Wire Size (AWG): | #18 |
| Minimum Wire Size (AWG): | #22 |
| Wire Strip Length: | 11/32 In. (8.7 mm) |
| Tab Size: | 0.250 x 0.032 In. (6.3 x 0.8 mm) |
| Maximum Voltage (V): | 600 |
| Base Material: | Brass |
| Finish/Coating: | Tin-Plated |
| Color Code: | Red |
| Barrel Type: | Funnel |
| Flammability Rating: | UL94-HB |
| Maximum Operating Temperature: | 105 °C (221 °F) |
| Sub Brand: | Pan-Term |
| Maximum Metric Conductor Size (mm²): | 1 |
| Minimum Metric Conductor Size (mm²): | 0.5 |
| Maximum Wire Insulation Diameter: | 0.18 In. (4.5 mm) |
| Overall Height: | 0.21 In. (5.3 mm) |
| Overall Length: | 0.6 In. (15.24 mm) |
| Overall Width: | 0.6 In. (15.2 mm) |
| Tongue Angle: | Right Angle |
| Packaging Type: | Box |
| Product Type: | Disconnect |
| For Use With: | CT-300-1 |
| Maximum Voltage (kV): | 0.6 |
| Part No: | DNFR18-250FIB-M |
