Product Details
＋

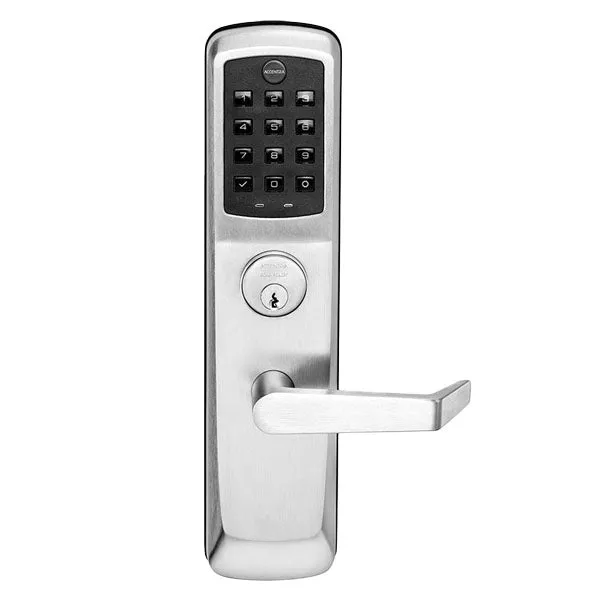

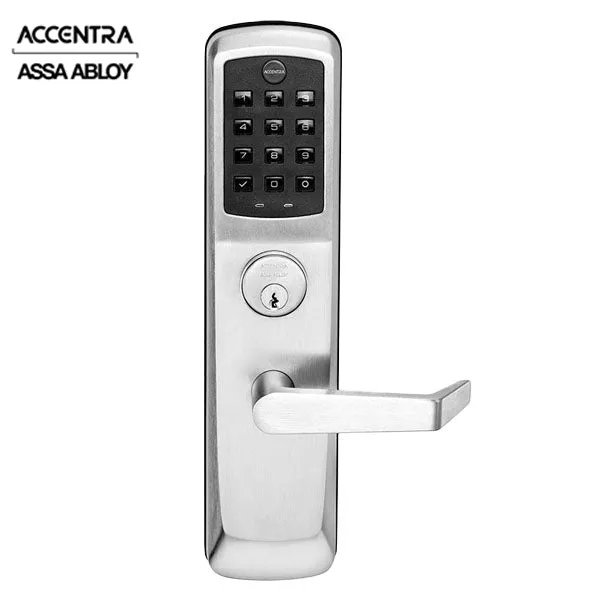

Ideal for retrofit projects, Yale nexTouch Exit Trim is the perfect way to upgrade an existing exit device for easy, key-free access.
Features:
- Capacitive touchscreen or pushbutton keypad available, for tactile environments and ADA compliance
- Patented adjustable mounting posts enable retrofit onto many exit device models without any additional hardware
- Up to 500 user codes in keypad only operation
- 9V battery power backup prevents lockout even if the batteries fail
- Modular technology allows users to upgrade to dataon-card or Z-Wave wireless technologies as system requirements change and grow
- Standalone Electronic Rim Exit Device Trim
- Compatible w/ Yale, Von Duprin, Sargent, Corbin Russwin, and more
- Up to 500 Unique PIN Codes – Mechanical Key Override
Specifications:
| Lock Function: | Exit Device Trim |
| Handing: | Easily Re-handed in the field – Shipped as RHR |
| Lever: | Augusta Style |
| Finish: | 626 - Satin Chrome Plated |
| Tech: | Keypad Only, No Radio |
| Door Thickness: | Adjustable 1-3/4" |
| Cylinder: | 2153 Yale E1R Para Keyway |
| ADA: | Meets ADA requirements – A117.1 Accessibility Code |
| Certifications: | UL and cUL Listed – up to 3 Hours |
| Warranty: | 3 Year Limited Manufacturer's Warranty |
Compatible Exit Devices:
- Arrow 3880
- Corbin Russwin ED5200, ED5200S
- Dorma 9300
- Falcon 25
- SARGENT 8800
- Von Duprin® 98, 99
- Yale 1800, 2100, 6000, 7000
