Product Details

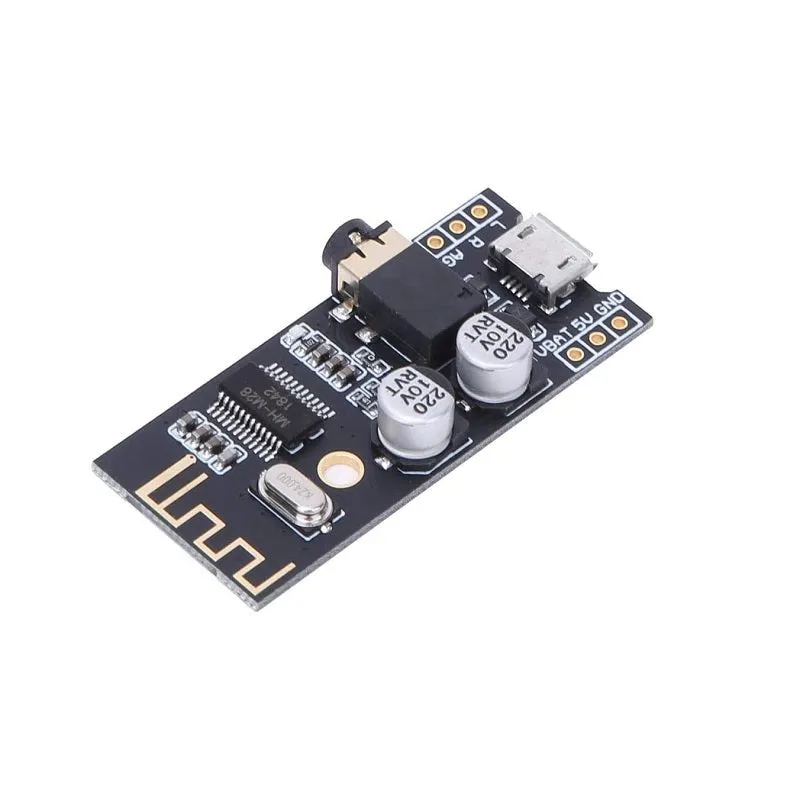

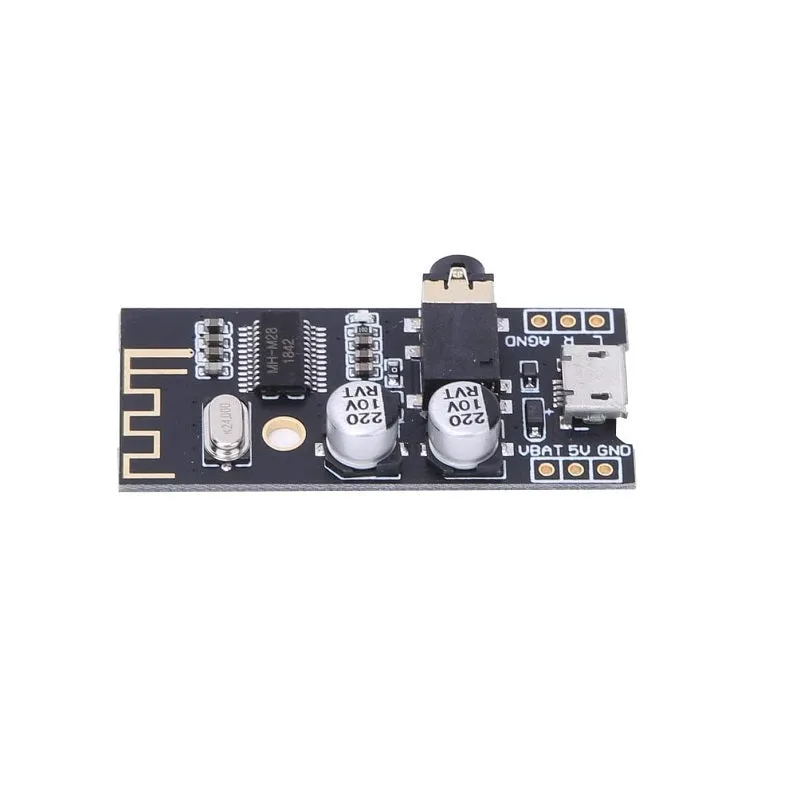

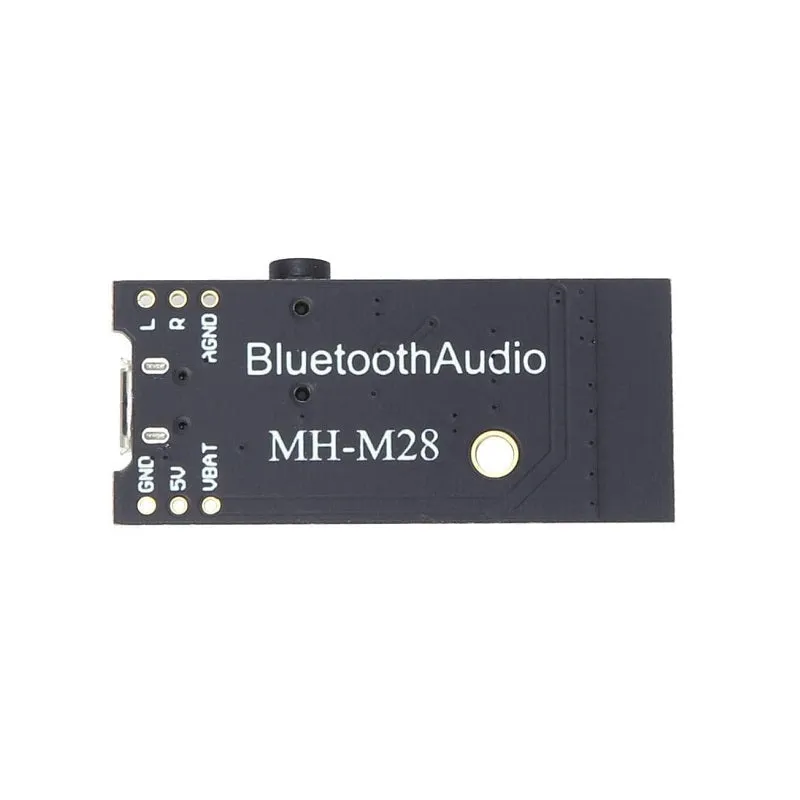

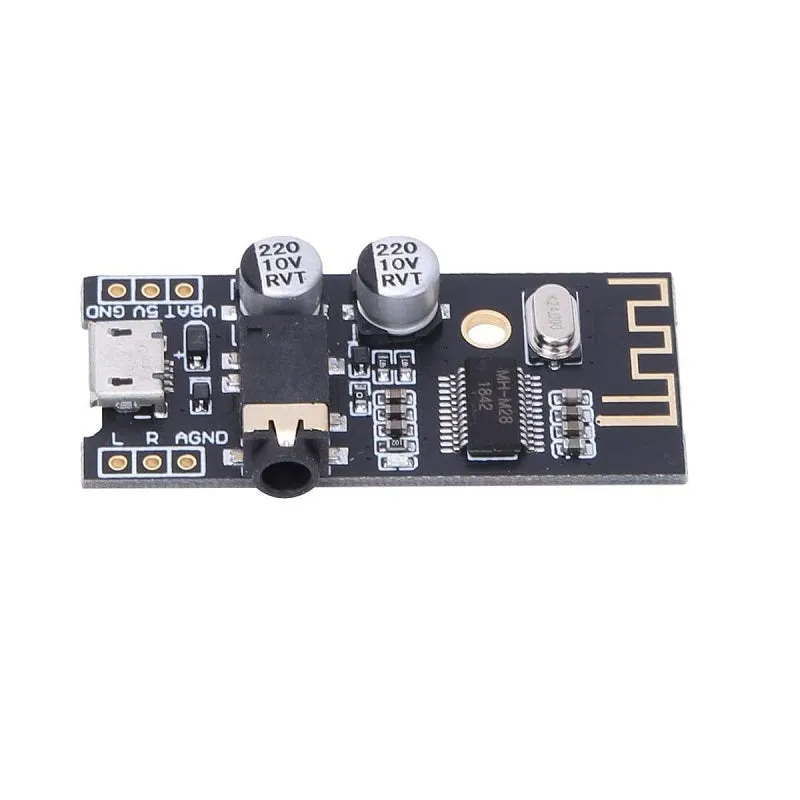

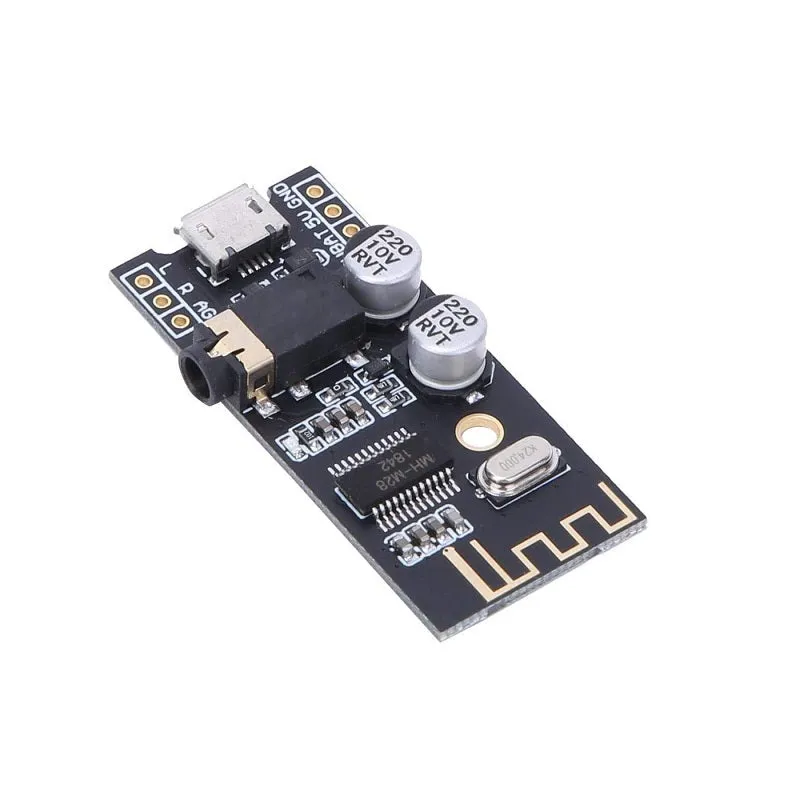

The MH-M28 Wireless Bluetooth Audio Receiver Board Module is a versatile electronic module that allows you to add Bluetooth audio capabilities to various devices and projects.

Here are some key features and functions of this module:

Bluetooth Version: The module typically uses Bluetooth 4.2 technology, which offers a stable and efficient wireless connection to compatible devices like smartphones, tablets, and computers.

Audio Decoding: It is capable of decoding various audio formats, including MP3 and lossless audio formats. This means it can receive and playback audio files in high-quality formats.

Wireless Audio Streaming: You can connect your Bluetooth-enabled source device (e.g., smartphone, laptop) to the module, and it will receive and play audio wirelessly from your source device to your sound system or speakers.

Audio Output: The module typically has audio output pins, such as a line-out or headphone jack, allowing you to connect it to external amplifiers, speakers, or headphones.

Microphone Input: It may have a microphone input, enabling you to use it for hands-free calling or voice commands if it supports such features.

Power Supply: The module typically requires a DC power supply within a specified voltage range (e.g., 5V to 12V) for operation.

LED Indicators: LED indicators may be present to show the module's status, such as Bluetooth pairing, power, and playback status.

Versatile Applications:

This module can be used in various applications, such as DIY Bluetooth speakers, wireless audio receivers for car stereos, and home automation projects that involve wireless audio streaming.

Technical Details

  • Model : MH-M28
  • Bluetooth Version : Bluetooth 4.2
  • Operating Voltage (VDC) : 3.7 ~ 5
  • Max. Operating Current (mA): 20
  • Transmission Distance : 20 meters
  • Operating Temperature (°C) : -40 to 85
  • Sensitivity : -87dbm

Features

  • Support WAV/WMA/FLAC/APE/MP3 lossless decoding, stereo two-channel output
  • Support Bluetooth Protocol HFPV1.7, A2DPV1.2, AVRCPV1.5, AVCTPV1.2, AVDTPV1.2
  • Maximum Transmission Distance of 20 meters.
  • Micro USB Power Supply
  • 3.5mm Audio Jack
  • Can be powered via lithium Battery.

Applications

  • Conversion of old speakers into Bluetooth speakers
  • DIY Bluetooth speakers

Physical Attributes

  • L x W x H (mm): 45 x 20 x 2
  • Weight (gm) : 4

Package Includes

  • 1 x MH-M28 Wireless Bluetooth Audio Receiver Board Module BLT 4.2 mp3 lossless decode
MH-M28 Wireless Bluetooth Audio Receiver Board Module BLT 4.2 mp3 lossless decode
  • DefaultTitle

$ 61.43

$ 47.25
